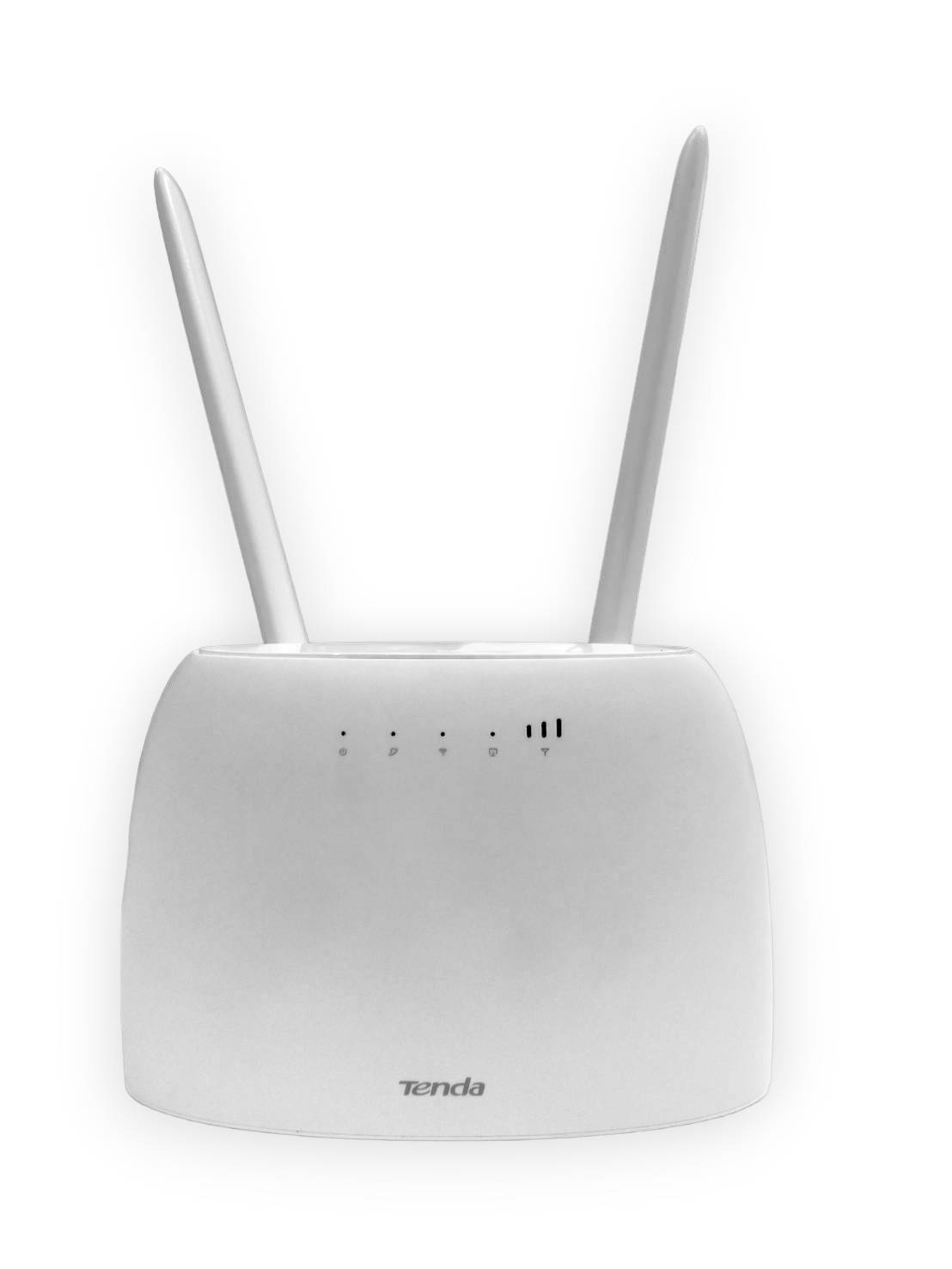

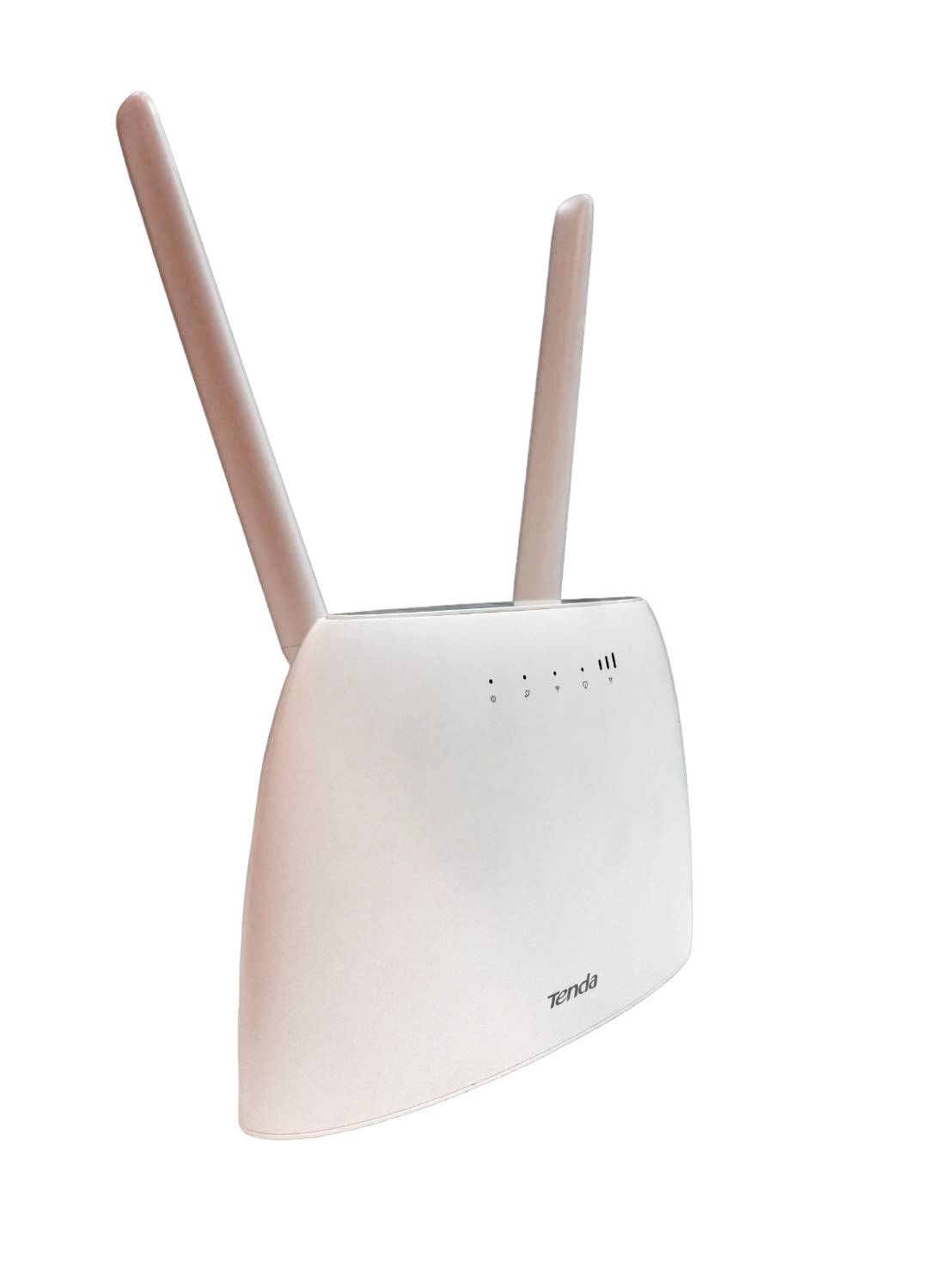

Tenda N300 Wi-Fi 4G VoLTE Mobile Gateway

 4G Cartgory LTE CAT4

4G/3G standards            FDD LTE,TDD-LTE,WCDMA

4G Mobile Bands            4G FDD LTE:B1/B2/B3/B4/B5/B7/B8/B20/B28AB

                                   4G TDD-LTE:Band38/Band40

                                   3G WCDMA:B1/B2/B5/B8

                                   2G GSM:B3/B8

Max 4G speed               DL:150Mbps

                                   UL:50Mbps

Wi-Fi standards             802.11b/g/n

Wi-Fi frequency             2.4GHz

Wi-Fi speed                   2.4GHz:300Mbps

Wi-Fi transmit Power      2.4GHz:up to 20dBm

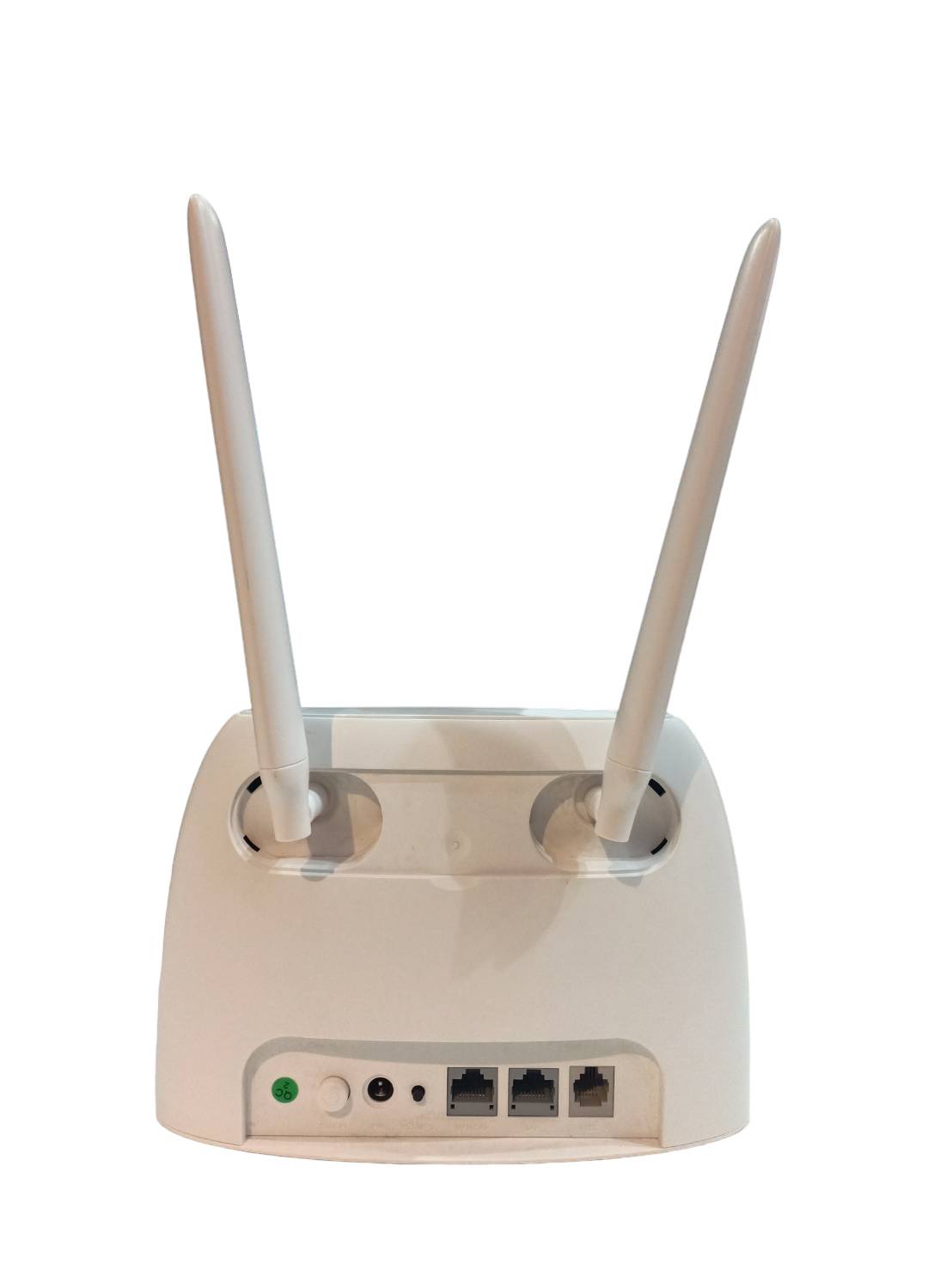

Interface                      1 × 10/100 Mbps LAN/WAN Port

                                   1 × 10/100Mbps LAN Port

                                   1*Tel Port

                        1 × 2FF SIM Card Slot

Button                         Power on/off

                                  WPS/Reset

Antenna                       2 detachable 4G/3G/2G Antennas

                                   2 Internal Wi-Fi Antennas

LED                             Power

                                   Wi-Fi

                                   LAN

                                   Internet

                                  4G/3G/2G Signal strength(3 Bars)

Dimension                   185*126*60mm（L*W*H）

Weight                        About 350g

Power Supply               Power adapter:Input power AC 100V-240V 50/60Hz

                                  Output power:DC 12V==1A

WAN Type                   4G/3G/2G or Wired

                                  4G/3G Features

Auto-APN

Auto dial-up

Roaming

SMS(Send/Receive/Delete)

VoLTE/CSFB

USSD

Data limted

PIN Management

Wi-Fi functions             Broadcast and Hide Wi-Fi name

                                  Guest network

                                  Wi-Fi schedule

                                  Wi-Fi security

                                  WEP,WPA-PSK, WPA2-PSK, WPA/WPA2

Software features         APP/Local/remote management

Parental control            DHCP(DHCP Server and Client)

                                  Virtual Server(UPnP/DMZ/Port Forwarding)

                                  DDNS(DynDns, 88ip)

                                  VPN(PPTP Client/L2TP Client/PPTP Server)

Firewall                       QOS

                                  Upgrade firmware from local or OTA

IPV4/IPV6                   TR069

Certification                 FCC Granted

                                  CE Granted

                                  ROHS Granted

Temperature                Operating Temperature: 0℃~40℃

                                  Storage Temperature: -30ºC~70ºC

Humidity                      Operating Humidity: 10% ~ 90% RH Non-condensing

                                   Storage Humidity: 5% ~ 90% RH Non-condensing

Package Content

1 * 4G LTE Router

2 * Detachable antennas

1 * Ethernet cable

1* RJ11 Tel cable

1 * Power adapter

1 * Quick Installation Guide
